TOOLTOP T7 256*192 Android Type-C Thermal Imager 25Hz Mobile Thermal Imaging Camera for Solar Panel Power Device Fault Detect

Select Color

From $51.04

Original: $170.12

-70%

TOOLTOP T7 256*192 Android Type-C Thermal Imager 25Hz Mobile Thermal Imaging Camera for Solar Panel Power Device Fault Detect—

$170.12

$51.04

The Story

Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry

Upgrade

Optional magnetic macro lens, lightweight, all germanium optical transmittance 93%

Minimum observable component size of 2 * 1mm

Features:
High-quality optical lens, equipped with 256*192 high-resolution infrared sensor, excellent imaging effect
25Hz high frame rate imaging, smooth picture flow without lag

Used with mobile APP, it supports taking photos ,videos and storing them in the photo album, allowing professional thermal imaging analysis anytime and anywhere.

Add points, lines and rectangular boxes for regional temperature measurement. Lines and rectangular boxes support high and low temperature tracking and high temperature alarms.

Wide temperature measurement range: -15℃-600℃;

Automatic temperature tracking, supporting high and low temperature and center point temperature tracking;

Specifications:
Model:T7
Resolution:256 x 192
Wavelength:8-14um
Frame rate:25Hz
NETD:<50mk@25℃
FOV :56°x42°
Lens:3.2mm
Temperature measurement range:-15℃~600℃
Temperature measurement accuracy: 2C or 2%
Temperature measurement:Highest,lowest,central point and areatemperature measurement are supported
Language:Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish
Working temperature:-10C~75C
Storage temperature:-45C~85C
IP rating:IP54
Dimensions:25mm x40mm x14mm
Net weight:23g

Notice: Using mobile phone thermal imaging in normal environments (prohibited in harsh environments such as high temperature and high magnetism)

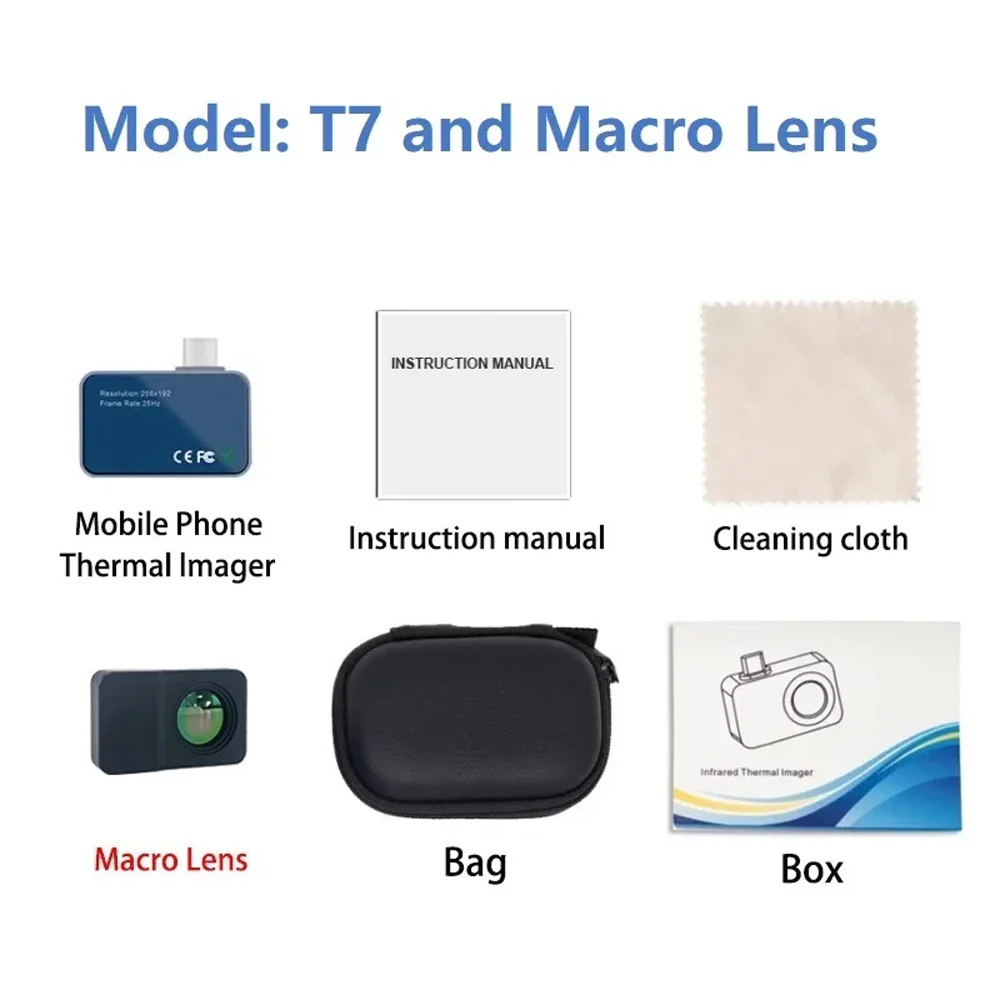

Package List:
1 x Thermal Imager
1 x English User Manual
1 x Cloth
1 x Box
1 x Storage Bag
