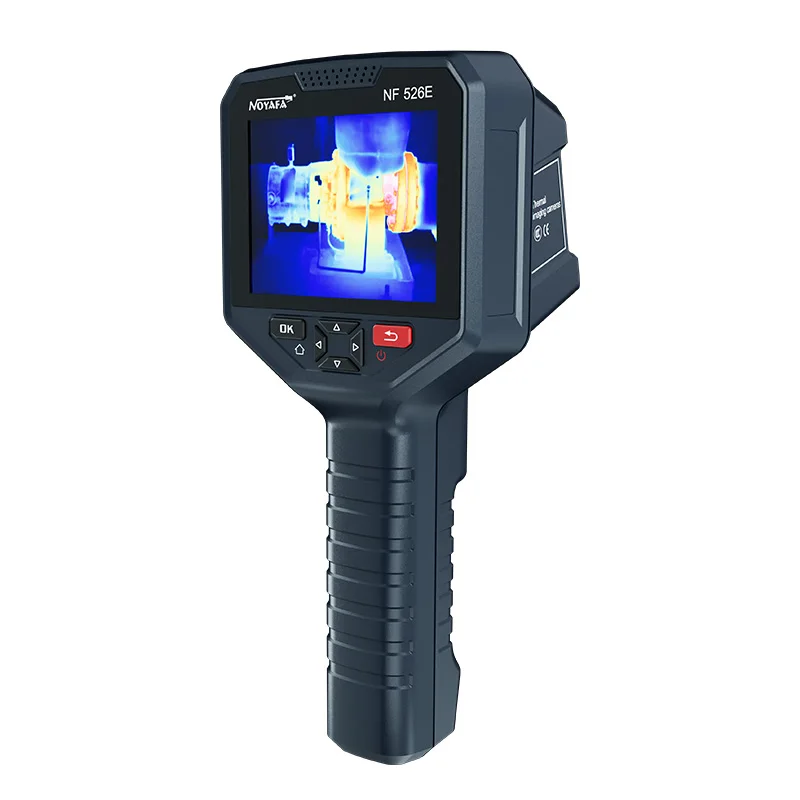

NOYAFA NF 526E Thermal Imaging Camera For Industrial Inspection Repaire Floor Heating HD 256 X 192 Pix Infrared Thermal

Product Features:

1. Thermal Imager has 3.5 inch full view display, 256x192 Infrared Resolution for Clear Image, 25Hz Frame rate of thermal images. Auto-Focus for Instant Thermal Imaging, quickly and accurately identifies areas of hidden issues to save power and expense.

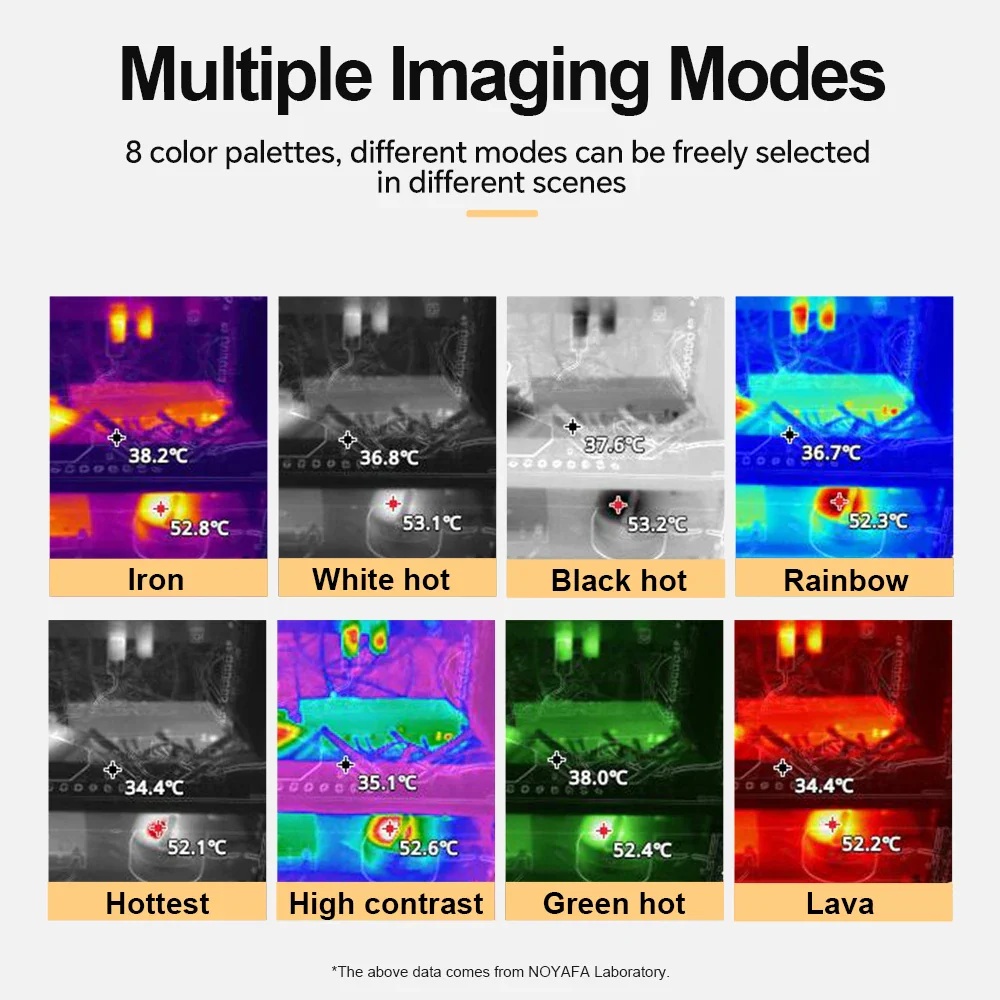

2. 8 COLOR PALETTES:  Iron Red, White Hot, Black Hot, Rainbow, Red Hot, High Contrast, Green Hot, and Lava.

3.5 Image Modes: Edge fusion, Overlay fusion, Picture-in-picture, Infrared, and Visible light.

4.The emissivity of the infrared thermal camera can be adjusted from 0.01 to 1.00. Many common objects and materials (suchas timber, water, skin and textile fabric) can reflect the heat energy effectively,so it is easy to obtain relatively correct measurement value. The emissivity is usually set to 0.95 when rough objects that emits energy more easily aremeasured.

5. Photography Function

1). Press the "trigger button" to take a photo.

2). After taking the photo, press the "trigger" or "confirm key" again to save the photo.

3). Press the "return key" to cancel saving.

6. Video Recording Function

1). Press and hold the "trigger button" for 2 seconds to start recording.

2). Press the "trigger button" again to stop recording and save.

7. Export Pictures Function

Use the USB cable of the accessory to connect the thermal imager to the computer. A USB drive letter will appear on the computer. At this time, you can select the pictures you are interested in and copy them to the computer.



Product Description:

Brand: NOYAFA

Product Name: Thermal Imager

Type: NF-526E

Resolution: 256x192

Frame rate: 25Hz

Temperature measurement range: -20~400°C

Temperature measurement accuracy: ±2°C or ±2% of reading

Temperature measurement:Supports temperature measurement at the highest point, lowest point, center point of the entire screen and regional temperature measurement

Color palette: 8 types

Image mode: 5 types

Screen size: 3.5 inches

Languages: 10 (Chinese (Simplified), Chinese (Traditional), English, French, German, Spanish, Dutch, Japanese, Korean, Arabic)

Interface: USB Type-C (supports charging and data transmission)

Battery: 2600mAh lithium battery

Product size: 230x100x90mm
