LILYGO® T3S3 ESP32-S3 Dev Board LoRa Module LR1121 SX1280 SX1262 SX1276 WiFi Bluetooth Display T3S3 MVSRS Voice Communication

T3S3 Introduction

T3S3 V1.0 is a new version of the LoRa series (formerly LoRa32 series), featuring the SX1280 LoRa module supporting the LoRa 2.4G frequency band for global use. It is also equipped with the ESP32-S3 main control chip and supports TF cards.

Key Selling Points:

Powerful LoRa Communication Performance: Equipped with the LoRa module, it delivers outstanding long-range communication performance, suitable for IoT applications requiring extended reach and low power consumption.

Global Usability with LoRa 2.4G Frequency Band: Optional the LoRa 2.4G frequency band ensures stable operation globally, complying with different countries' and regions' spectrum regulations.

Advanced Main Control Chip: Integrated with the ESP32-S3 main control chip, providing higher computing performance and additional interface options, enhancing device flexibility and expandability.

TF Card Support: The device supports TF cards (microSD cards) for extended storage, facilitating users in storing and managing data, particularly useful in scenarios requiring large-capacity storage.

Wide Range of Applications: Leveraging the long-range capabilities of LoRa technology, this module finds applications in various IoT scenarios, including smart agriculture, smart cities, and industrial IoT.

LILYGO® July 20, 2022

ℹ️Product information

• Check out our GitHub repository for sample code and more detailed information about this board.

• T3S3

• T3-S3-MVSRBoard

‍Technical support

• Visit our GitHub community, post a description of the problem and our engineers will help you directly.

• Xinyuan-LilyGo

What's in the box?

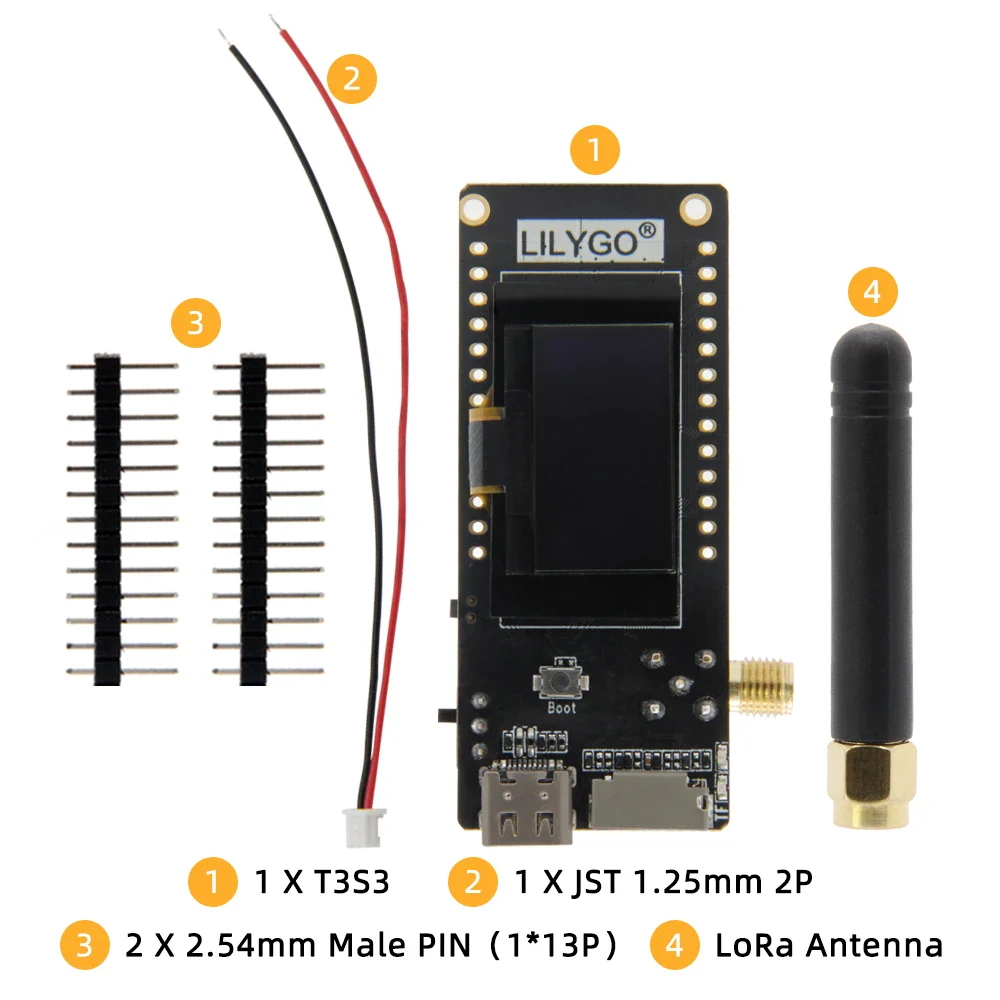

• 1 X T3S3

• 2 X 2.54mm Male PIN（1*13P）

• 1 X Battery Cable

• 1 X LoRa Antenna

️Warm Reminder

It is recommended to control the output power of the SX1280 chip between 2-5 dBm when using the SX1280 PA module, to ensure that the entire module outputs a power of 20 dBm.

If the output power of the SX1280 chip is higher than 5 dBm, it will exceed the maximum allowable input for the FEM chip and cause damage.

However, if the output power is lower than 2 dBm, the module's output power will still be within 20 dBm.

Therefore, the output power setting of the SX1280 chip must be carefully controlled and not exceed 2-5 dBm to avoid damaging the FEM chip.

Setting the output power to 3 dBm will ensure an output power of 20 dBm.
