Name: LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution
Brand: TUFZEN
SKU: lilygo-r-t-display-s3-esp32-s3-1-9-inch-st7789-lcd-display-development-board-wifi-bluetooth5-0-wireless-module-170-320-resolution
Availability: InStock

✨ New Arrivals Just Dropped!Explore

Home Store

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution

Select Model

From $7.19

Original: $23.98

-70%

LILYGO® T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution—

$23.98

$7.19

The Story

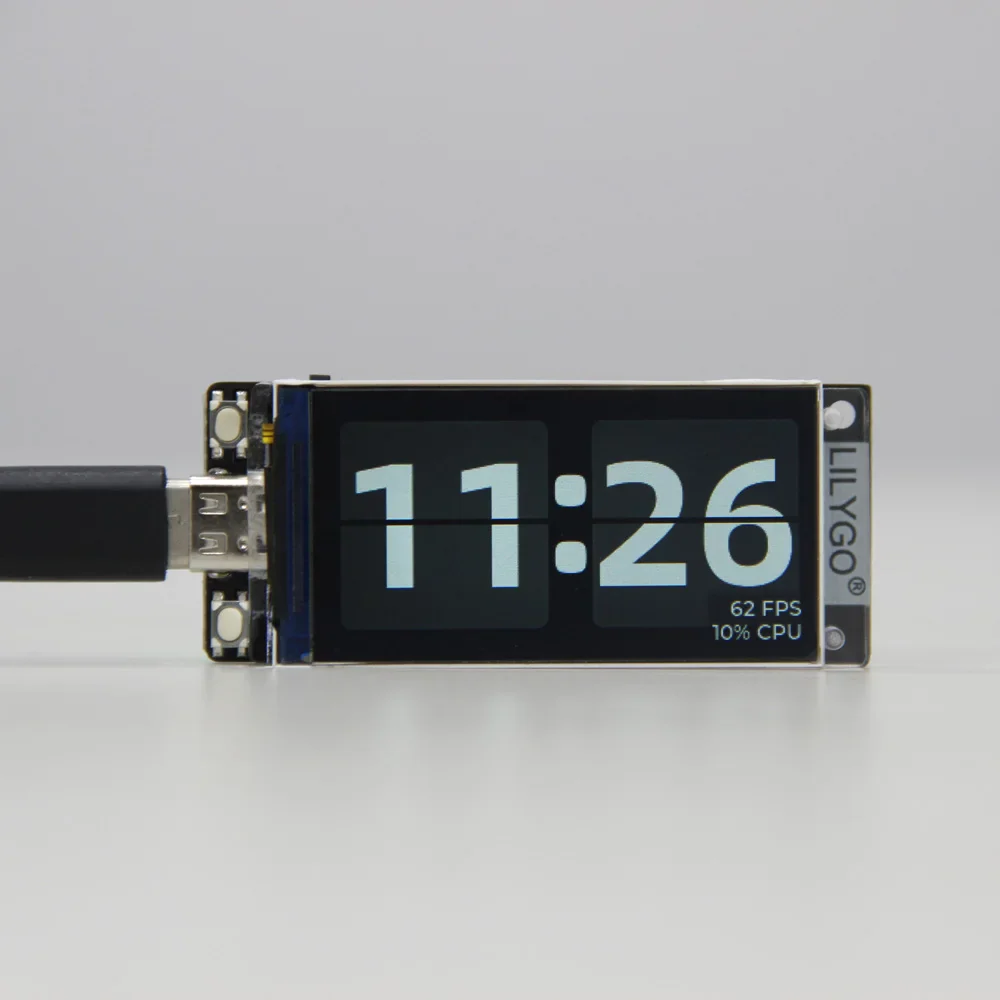

T-Display-S3 Introduction

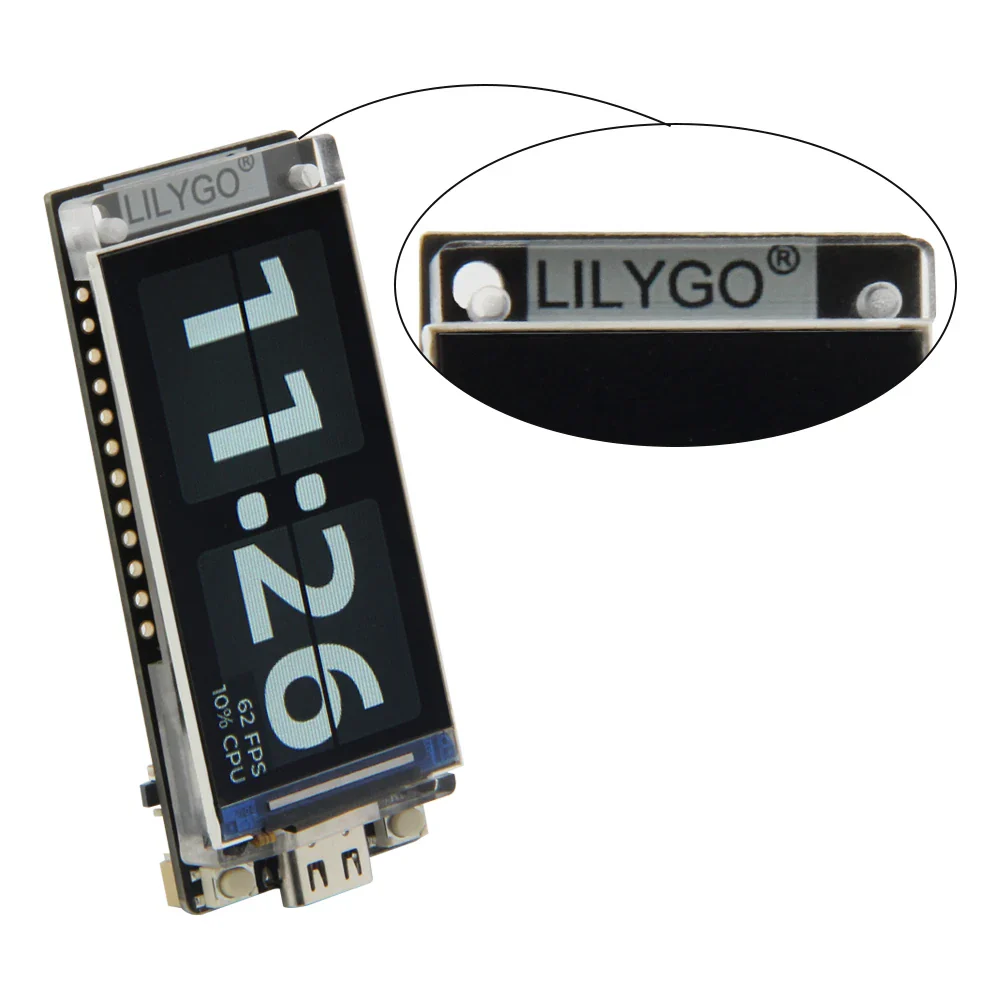

Introducing the latest addition to the T-Display series - the T-Display-S3. Equipped with the latest ESP32-S3 and Bluetooth 5.0, this model boasts a larger 1.9 inch screen and features an acrylic plate for added stability.

The T-Display-S3 maintains the sleek and modern design of the T-Display series.

There are MIDI expansion boards for use with the T-Display S3

Connect it to headphones or a stereo and playback the simulated sound!

Compatible with T-Display S3 Basic Version and Touch Version.

️[Please note that the package does not include the T-Display S3 device, only the MIDI Board; please select the appropriate version of the S3 to use with the MIDI Board according to your needs].

T-Display S3-MIDI

More Information

Github

T-Display-S3 Touch Edition

From YouTube's "Useful Electronics" presentation:

Contribution from "У Павла!"

What engineers have done with T-Display-S3

Car Dashboard/Controller, Game, Monitors....

Certification

"CE" "FCC" "TELEC(MIC)" "UKCA"

The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually.

Press and hold the BOOT button when the power is off, the button is located behind the RST button.

When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button

Please refer to the diagram for further instructions. Check

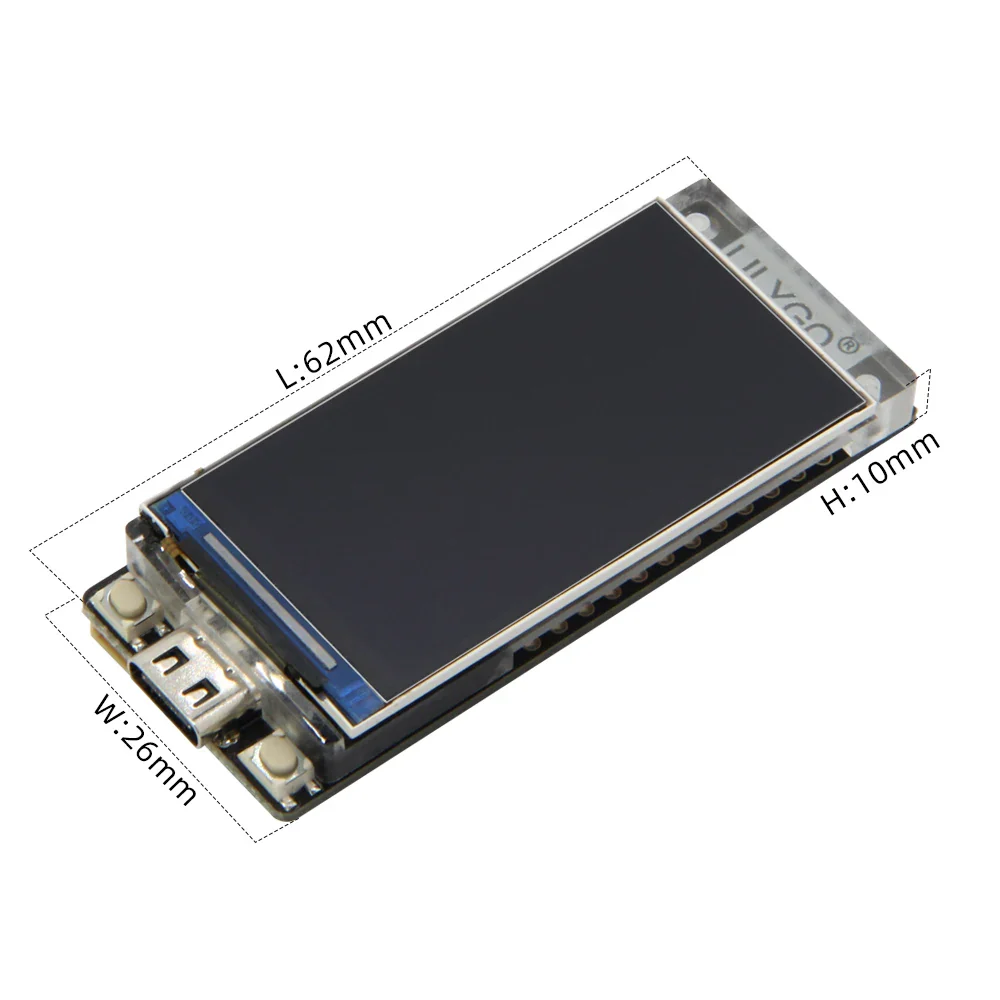

T-Display-S3 Specifications
MCU	ESP32-S3R8 Dual-core LX7 microprocessor
Flash	16MB
PSRAM	8MB
Wireless Connectivity	Wi-Fi 802.11
Wireless Connectivity	Bluetooth 5.0 + BT mesh
Programming Platform	Arduino-ide、Micropython
Bat voltage detection	IO04
Onboard Functions	Boot+Reset+IO14 Button

1.9 inch ST7789V IPS TFT LCD
Drive Chip	ST7789	Resolution	170(H) x 320(V)
Screen Size	1.9" Diagonal	Interface	8-Bit Parallel
Screen Type	TFT IPS LCD	Pixels Per Inch(PPI)	260
Screen Color	Full color	Color	White

Support USB/Li-Po Battery Dual Power Supply

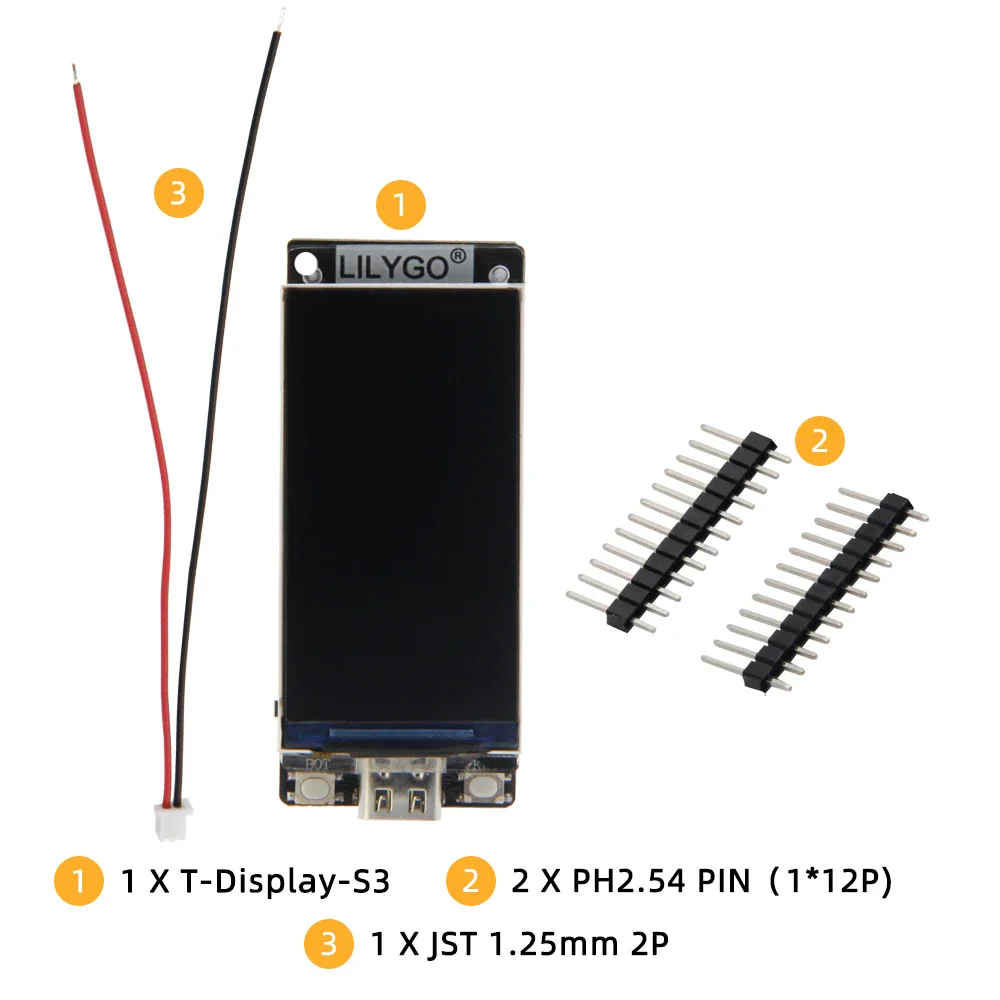

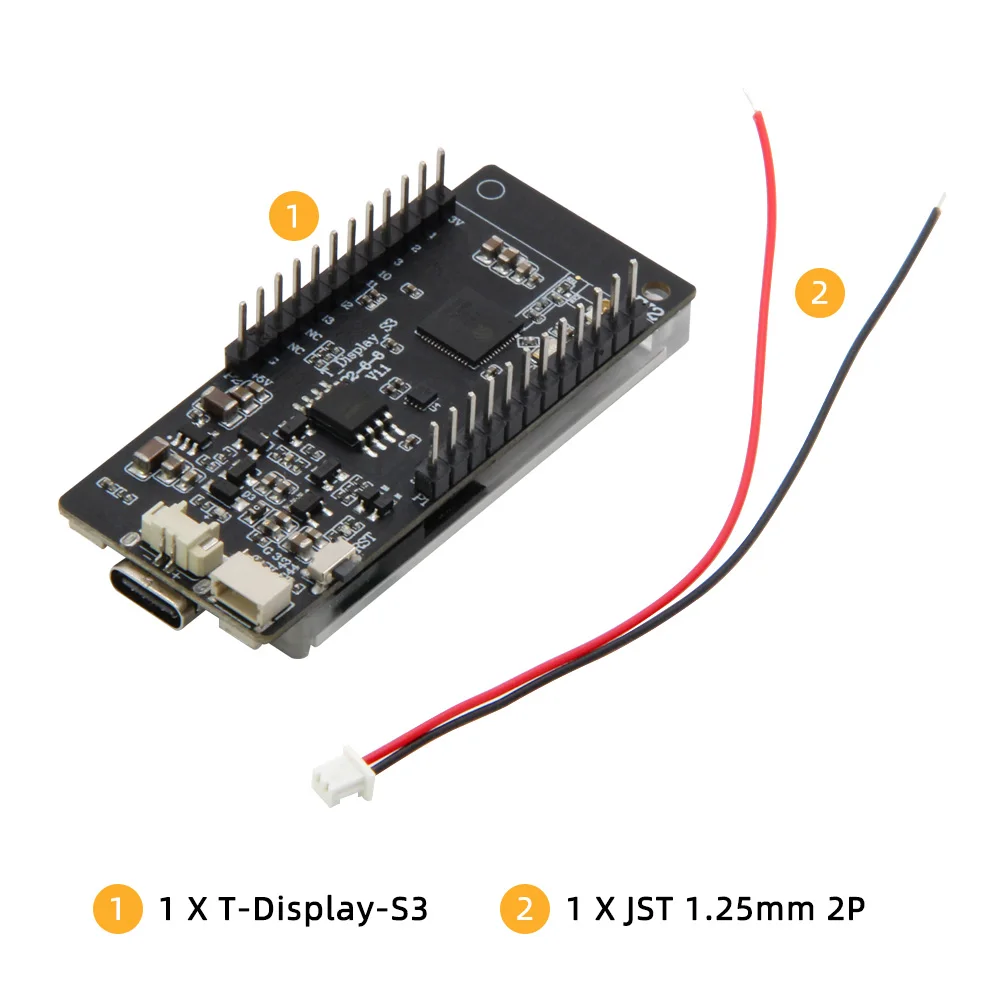

T-Display-S3

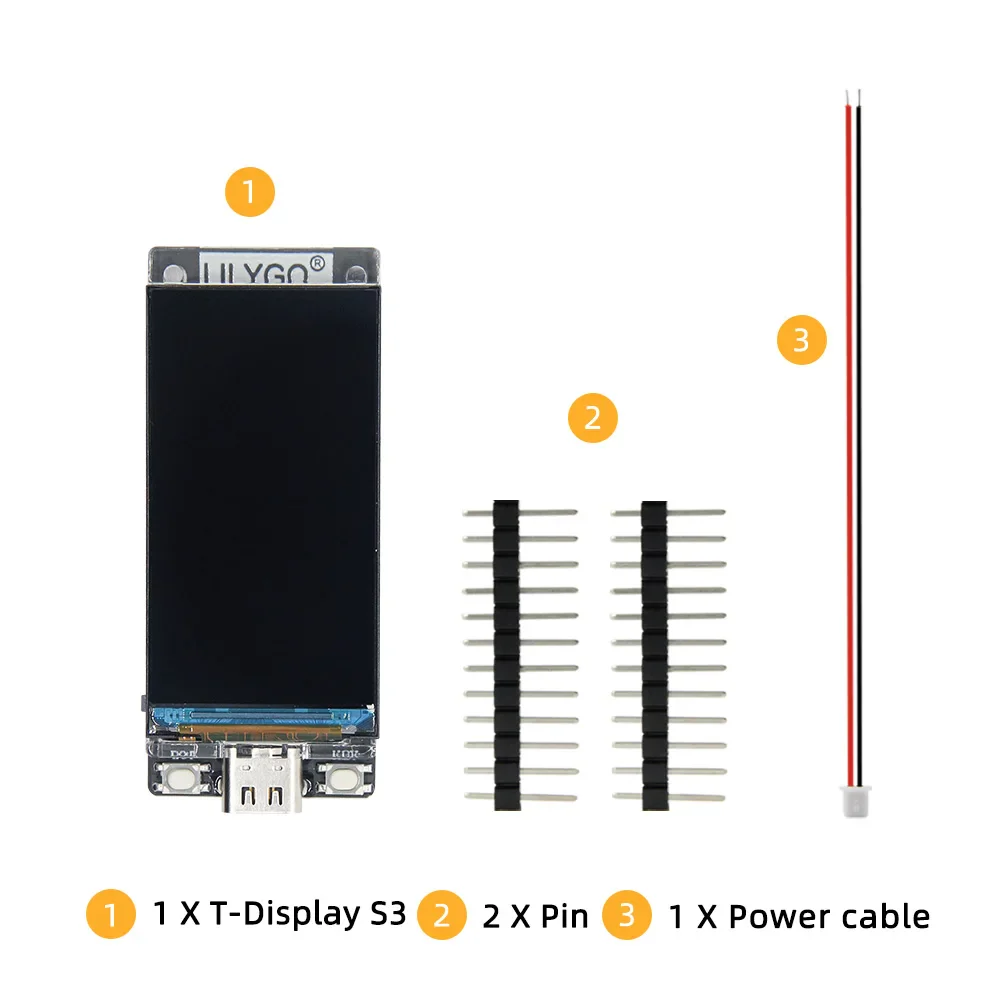

No Soldering Pin	Soldering Pin	What's in the box?
		1 X T-Display-S3
		2 X 2.54mm Male Pin (1*12P)
		1 X Power Cable 1.25mm 2P

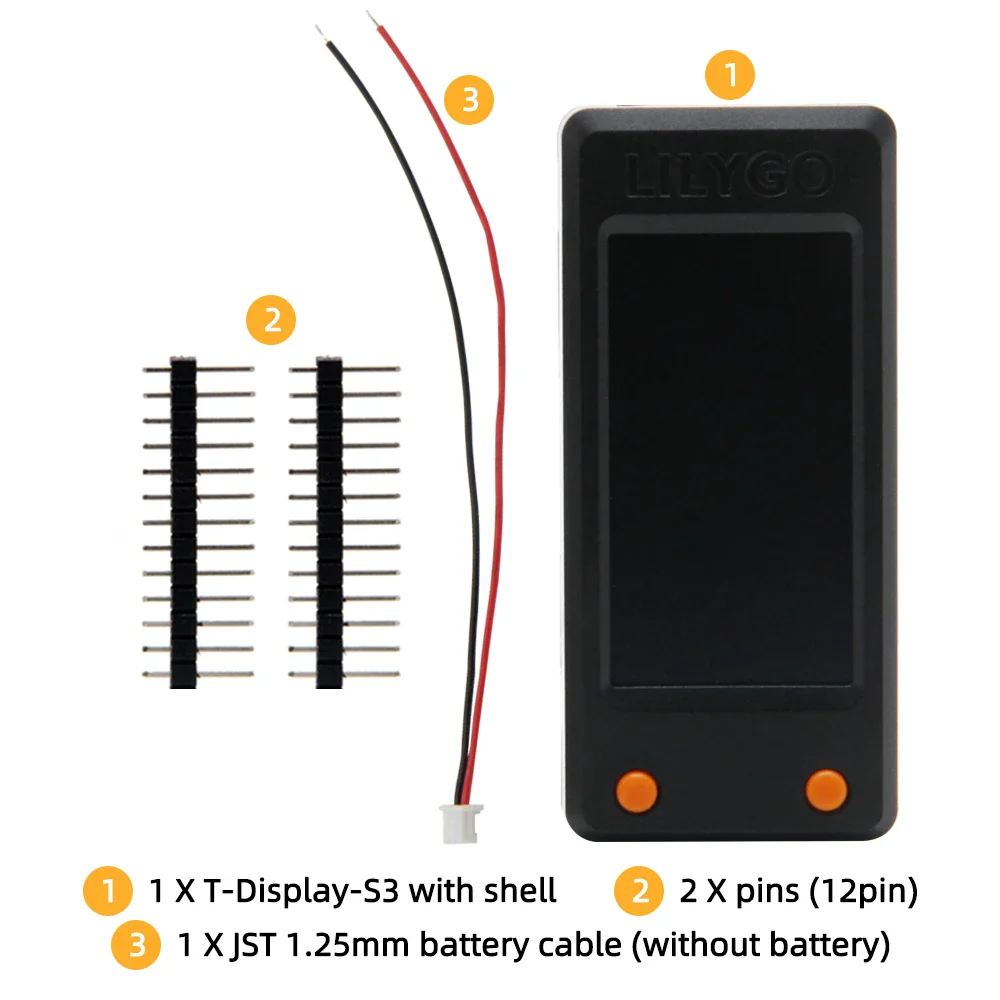

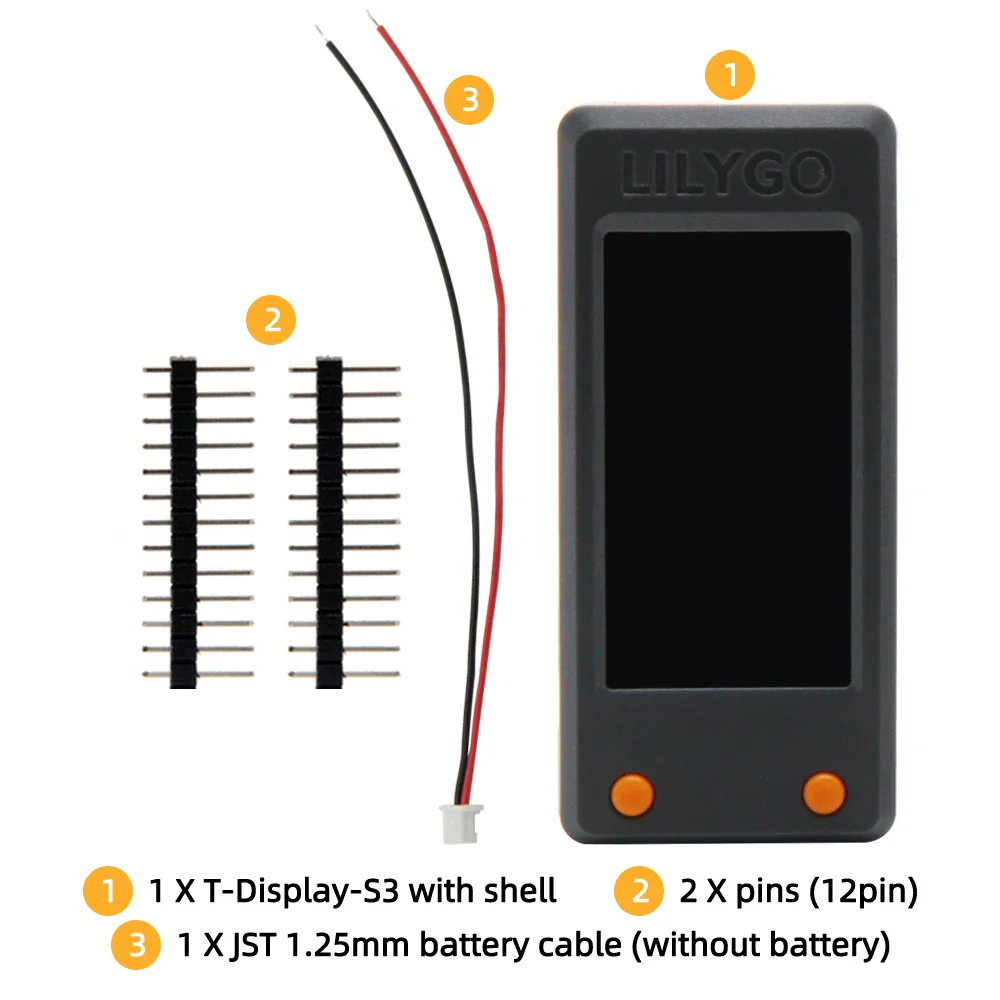

T-Display-S3 With Shell

T-Display-S3 With Shell
Grey Shell	Black Shell	What's in the box?
		1 X T-Display-S3 With Shell
		2 X 2.54mm Female Pin (1*12P)
		2 X 2.54mm Male Pin (1*12P)
		1 X Power Cable 1.25mm 2P

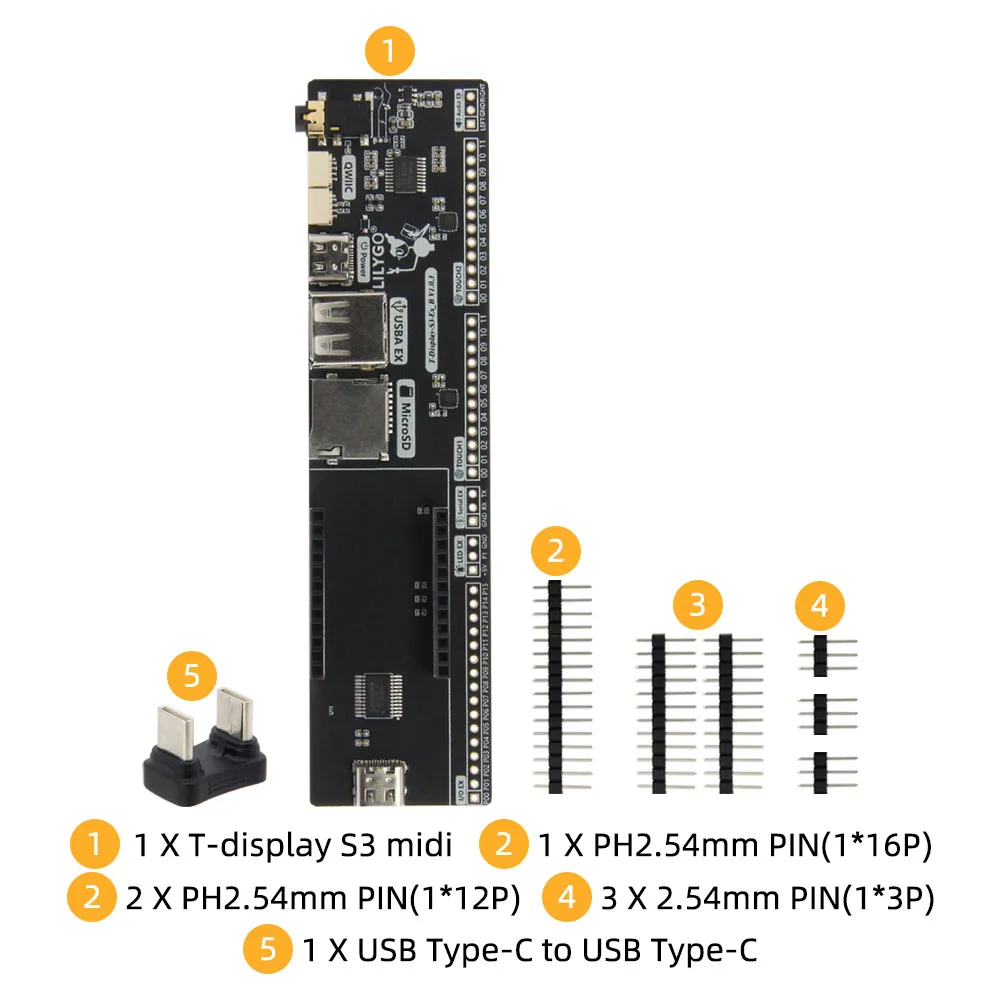

T-Display-S3-MIDI Shield

T-Display-S3 Shield [Please note that the package does not include the T-Display S3 device, only the MIDI Board.]
Only MIDI Shield	Not include the T-Display S3	What's in the box?
		1 X Shield
		1 X 2.54mm Male Pin (1*16P)
		2 X 2.54mm Male Pin (1*12P)
		3 X 2.54mm Male Pin (1*3P)
		1 X USB Type-C to USB Type-C
