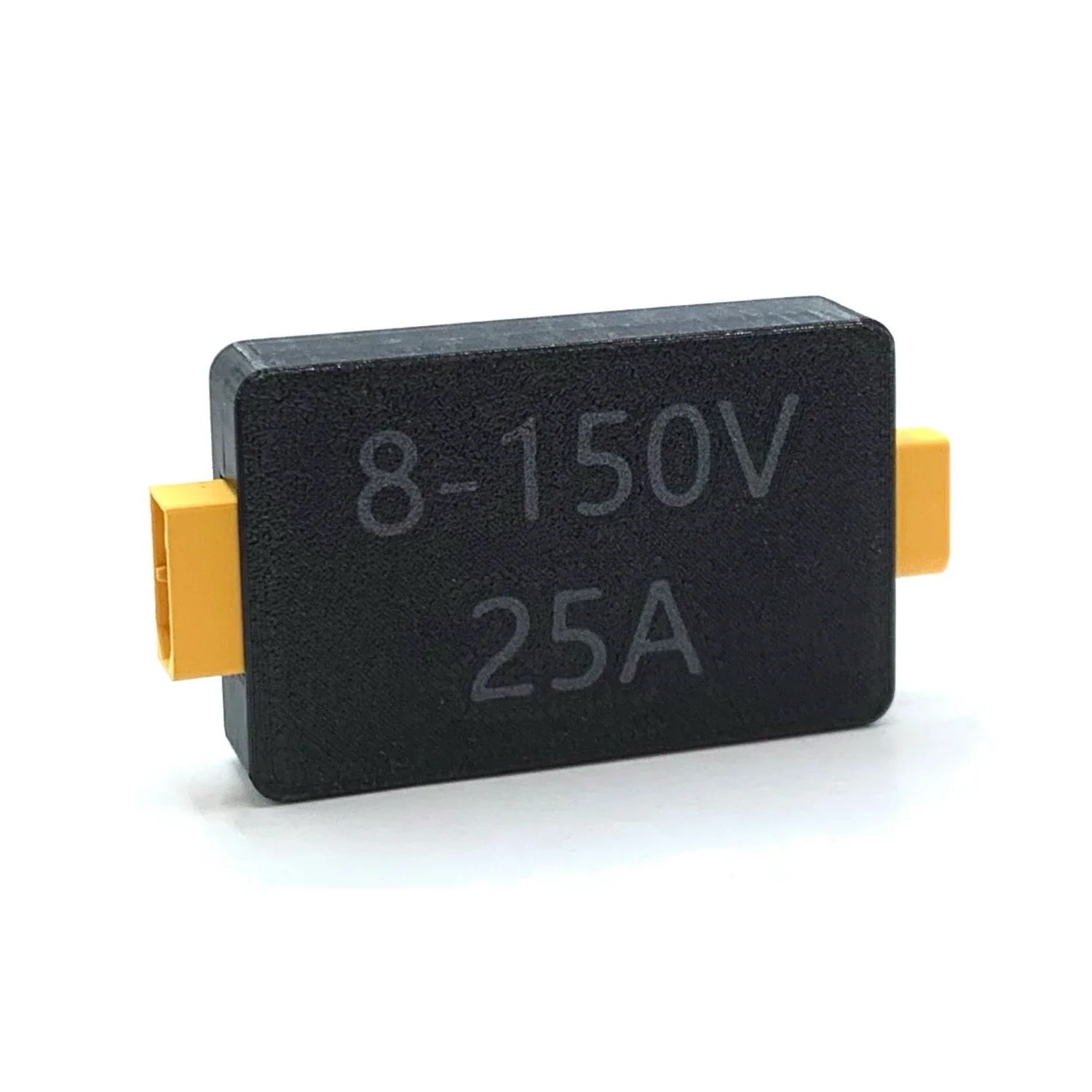

8-150V 25A Power Meter, XT60 Bidirectional Coulomb Meter, Model Aircraft /LIPO Battery Voltage And Capacity Tester

Product Overview：

This high-precision power meter is specially designed for RC lithium batteries. It can monitor key parameters during the charging and discharging process in real time and record cumulative capacity data, providing users with accurate battery performance analysis.



Core functions：

- Capacity statistics: Supports dual-unit cumulative measurement of Wh (watt-hour) and Ah (ampere-hour), suitable for long-term charge and discharge tests.

- Real-time monitoring: Dynamically display the current voltage (U), current (I), and power (W) data, with a refresh rate of up to 3Hz.

- Bidirectional detection: Automatically identify the charging/discharging status, and the screen intuitively displays the current direction (positive/negative value).



Technical specifications：

- Physical parameters: 60mm×38mm×13.5mm (length × width × height), net weight approximately 30g

- Display configuration: 1.5-inch LCD screen

- Electrical performance:

- Operating voltage: 8-150V (Cannot start below 8V)

- Rated current: ±25A (instantaneous peak 50A, duration ≤3 seconds)

- Measurement accuracy: ±0.2%

- Resolution: 0.001V/0.001A

- Interface type: Gold-plated XT60 terminal



Instructions for Use：

1. Safety limitations: A continuous current exceeding 25A May reduce measurement accuracy. Do not overload the device.

2. Voltage requirement: The equipment must operate in an environment with a voltage of 8V or above and cannot detect lower voltages.

3. Calibration and Maintenance: The factory has been precisely calibrated. Unauthorized modification is strictly prohibited. It is recommended to use the original XT60 interface to ensure data reliability.

4. Operating Instructions

Press the reset button briefly to switch the display interface

Press and hold the reset button to reset the cumulative capacity



Packaging contents：

1 x XT60 8-150V power meter
